Vibration Isolation Mounts With Square flange(without failsafe)
Machine Mount(without failsafe) with square flange
．Elastomer: Natural Rubber
．Hardness: 60/70 ShA
．Metal part: Steel, zinc plated
．Tolerance: ISO 3302-1 M2

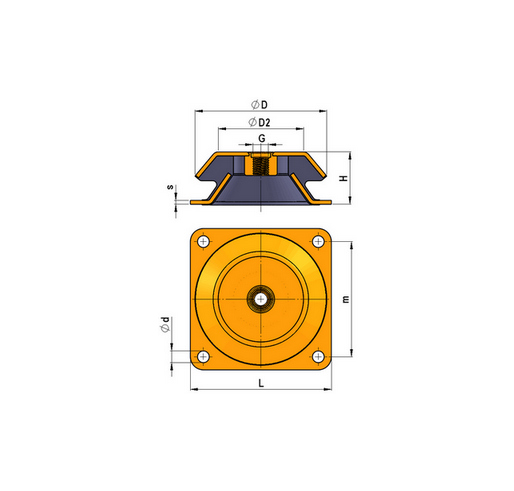

| No. | P/N | D | H | G | d | m | D2 | L | s | Permissible Permanent Static Load (N) |
Spring Load N/mm +/-20% (64ShA) |
Travel (mm) (64ShA) |
Weight kg |
INQUIRY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PBF6052A | 101 | 40 | M12 | 9 | 88 | 60 | 108 | 3 | 5000 | 2000 | 2.5 | 0.61 | ||
| PBF6053A | 150 | 51.5 | M16 | 12.5 | 132 | 110 | 168 | 4 | 13000 | 5200 | 2.5 | 1.9 | ||
| PBF6054A | 177 | 63 | M20 | 13 | 150 | 125 | 184 | 4.5 | 16800 | 4800 | 3.5 | 3.1 | ||
| PBF6055A | 192 | 70 | M20 | 13 | 165 | 150 | 200 | 6 | 18200 | 5200 | 3.5 | 4.45 |
