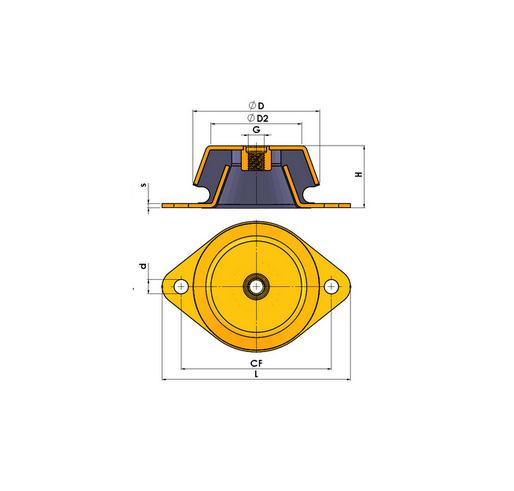

Machine Mount(without failsafe) with oval flange

．Elastomer: Natural Rubber
．Hardness: 60/70 ShA
．Metal part: Steel, zinc plated
．Tolerance: ISO 3302-1 M2

P/N	D	H	G	d	D2	CF	L	s	Permissible Permanent Static Load (N)	Spring Load N/mm +/-20%	Travel (mm)
PBF6037A	48	23	M8	6.2	38	68	81	1.5	2500	1250	2
PBF6038A	60	31	M10	8.3x16	46	75-90	106	3	5000	2500	2
PBF6039A	77	30	M10	9	59	110	128	2	8750	3500	2.5
PBF6040A	82	35	M10	11	64	110	128	3	6250	2500	2.5
PBF6041A	92	45	M12	10.5	73.5	138-146	138	3	8250	3300	2.5
PBF6042A	106	38	M12	14x18	81	160	172	3	10250	4100	2.5
PBF6043A	108	50	M16	16.5	83	158	190	5	9600	3200	3
PBF6044A	121	42	M16	13.5	92	158	188	3	10200	3400	3
PBF6045A	144	48	M16	14x18	120	186	216	4	10800	3600	3
