Vibration Isolation Mounts With Oval flange(with failsafe)
Machine Mount(with failsafe) with oval flange
．Elastomer: Natural Rubber
．Hardness: 60/70 ShA
．Metal part: Steel, zinc plated
．Tolerance: ISO 3302-1 M2
The failsafe mechanism is designed to prevent the metal cover from dislodging in the event of a rubber bonding failure.

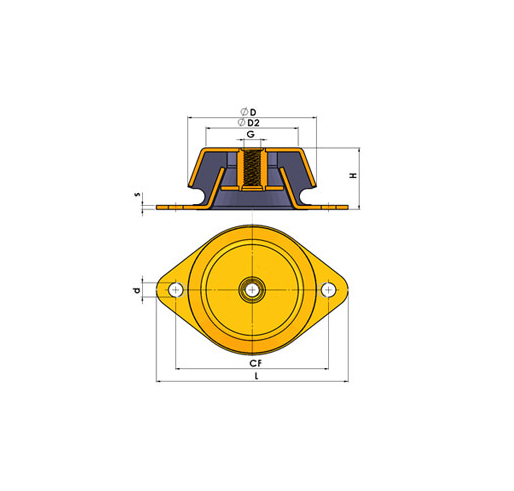

| No. | P/N | D | H | G | d | D2 | CF | L | s | Permissible Permanent Static Load (N) |
Spring Load N/mm +/-20% |
Travel (mm) |
INQUIRY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PBF6047A | 48 | 23 | M8 | 6.2 | 38 | 68 | 81 | 1.5 | 2500 | 1250 | 2 | ||
| PBF6031A | 60 | 31 | M10 | 8.3x16 | 46 | 75-90 | 106 | 3 | 5000 | 2500 | 2 | ||
| PBF6023A | 77 | 30 | M10 | 9 | 59 | 110 | 128 | 2 | 6250 | 2500 | 2.5 | ||
| PBF6032A | 82 | 35 | M10 | 11 | 64 | 110 | 128 | 3 | 8750 | 3500 | 2.5 | ||
| PBF6024A | 92 | 45 | M12 | 10.5 | 73.5 | 138-146 | 138 | 3 | 8250 | 3300 | 2.5 | ||
| PBF6025A | 106 | 38 | M12 | 14x18 | 81 | 160 | 172 | 3 | 10250 | 4100 | 2.5 | ||
| PBF6026A | 108 | 50 | M16 | 16.5 | 83 | 158 | 190 | 5 | 9600 | 3200 | 3 | ||
| PBF6027A | 121 | 42 | M16 | 13.5 | 92 | 158 | 188 | 3 | 10200 | 3400 | 3 | ||
| PBF6033A | 144 | 48 | M16 | 14x18 | 120 | 186 | 216 | 4 | 10800 | 3600 | 3 |
